Citizen science project for non-stellar emission line objects like Young Stellar Objects (YSO) Herbig-Haro Objects (HHOs) and Planetary Nebulae (PNe)



The cooperation between astronomers and amateurs offers innovation potential for research, in which ideas and impulses can flow into research and lead to new perspectives and questions.


Therefore, I am currently (04/2025) looking for partners and supporters, well equipped amateurs, astronomers with access to observatories.


Since 2023, we have discovered 15 new, previously unknown planetary nebulae, as well as 24 Young Stellar Objects (YSO), some with a bipolar structure. These are Herbig-Haro Objects. Further data still needs to be collected on some objects. Some of these objects have been registered in HASH PN database (Hong Kong University/Australian Astronomical Observatory/Strasbourg Observatory H-alpha Planetary Nebula Database). There is also an interaction with the Karl Schwarzschild Observatory in Tautenburg near Jena, Thuringia, and the Max Planck Institute for Astronomy, Heidelberg.


The new objects are a visual and photographic challenge for amateur astronomers. The sizes of compact nebulae vary between 10 and 30 arcseconds. The brightest candidates can be observed visually from 14", photographically from 8 inches aperture.



Young Stellar Objects (YSO), Herbig-Haro Objects (HHOs)

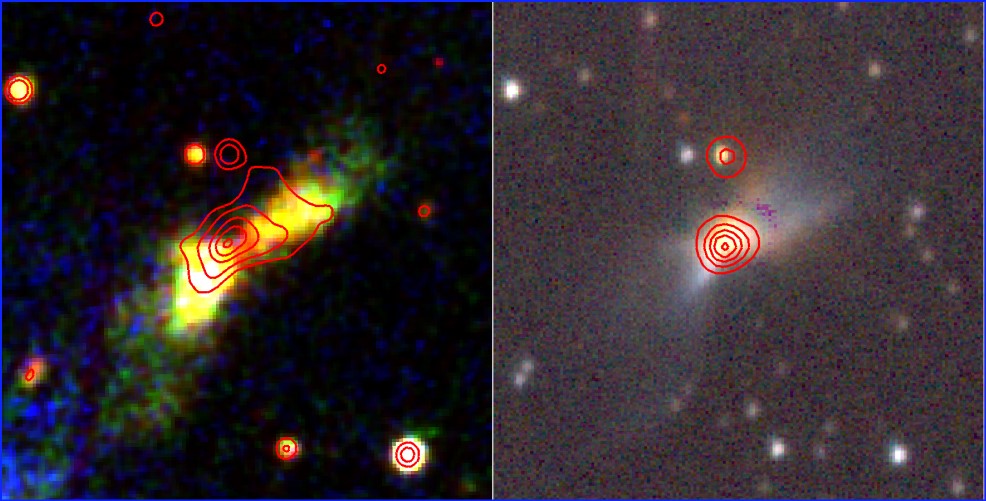

Bres 1

Name RAJ2000 DECJ2000 Dim
Bres 1 20:53:25.30 +51:08:17.8 0.3 arc min

Note: The main emission lines are typical for Herbig-Haro objects (HHOs). Further data are collected

RNAAS: Discovery of a Candidate Young Stellar Object in a Citizen Science Search for Compact Nebulae


Bres 1

Name RAJ2000 DECJ2000 Dim
Bres 1 20:53:25.30 +51:08:17.8 0.3 arc min

LINK: amateur images of Bres 1



Planetary Nebulae (PNe), White Dwarfs (WD)


BrRe 1 - PN-G 006.7+00.8

Name RAJ2000 DECJ2000 Dim
BrRe 1 06:47:17.63 +00:50:54.91 0.4 arc min

Note: Bresseler - Reinhart 1

BrRe 2 - 113.2-00.5

Name RAJ2000 DECJ2000 Dim
BrRe 2 23:30:33.20 +60:50:15.30 0.1 arc min

Br 1 - PN-G 184.9+02.5

Note: White Dwarf (WD)+

Br 2 - PN-G 158.1-03.3

Note: White Dwarf (WD)+

Br 3 - PN-G 181.0-06.4

Name RAJ2000 DECJ2000 Dim
Br 3 05:24:01.24 +24:33:45.90 0.3 arc min

Note: PN

Br 4 - PN-G 084.9+02.1

Name RAJ2000 DECJ2000 Dim
Br 4 20:42:56.03 +45:55:29.70 0.15 arc min

Note: PN

Br 5 - PN-G 086.4+01.7

Name RAJ2000 DECJ2000 Dim
Br 5 20:50:18.09 +46:50:13.70 0.2 arc min

Note: PN

Br 6 - PN-G 088.2-00.8

Name RAJ2000 DECJ2000 Dim
Br 6 21:08:31.30 +46:28:49.70 0.1 arc min

LINK: More infos can be found here:

Br 7 - PN-G 090.2-01.1

Name RAJ2000 DECJ2000 Dim
Br 7 21:17:42.40 47:41:38.10 0.15 arc min

Note: PN

Br 8 - PN-G 065.9+01.5

Name RAJ2000 DECJ2000 Dim
Br 8 19:51:24.70 +29:50:38.70 0.1 arc min

Note: PN

Br 9 - PN-G 081.7+04.5

Name RAJ2000 DECJ2000 Dim
Br 9 20:21:13.85 +44:47:14.20 0.2 arc min

Note: PN

Br 10 - PN-G 097.8+01.2

Name RAJ2000 DECJ2000 Dim
Br 10 21:42:43.40 +54:41:56.40 0.1 arc min

Note: PN

Br 11 - PN-G 087.9-03.2

Name RAJ2000 DECJ2000 Dim
Br 11 21:17:18.30 +44:34:54.10 0.1 arc min

Note: no confirmed PN, probably a white dwarf, WD

Br 12 - PN-G 088.2+03.3

Name RAJ2000 DECJ2000 Dim
Br 12 20:49:24.60 +49:12:57.10 0.3 arc min

Note: PN

Br 15 - PN-G 184.8+06.7

Name RAJ2000 DECJ2000 Dim
Br 15 06:23:06.98 +28:00:44.18 1.2 x 0.77 arc min

Note: PN
